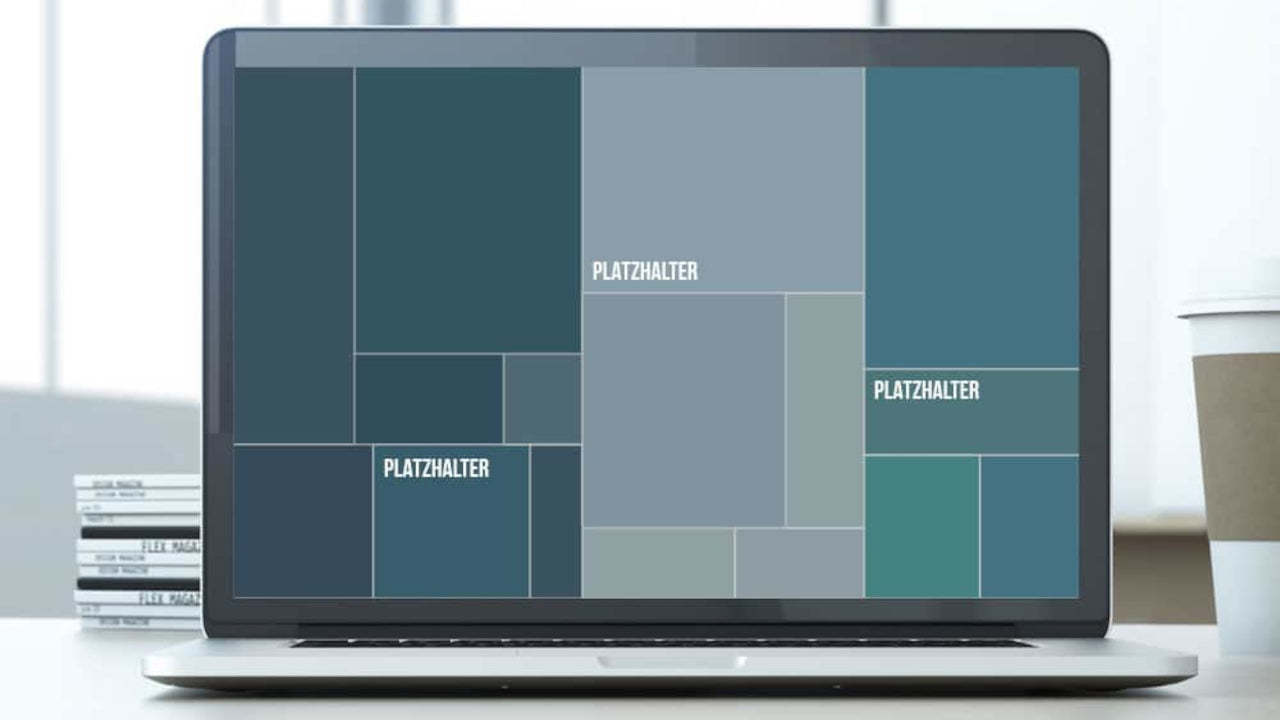

Treemaps are nested rectangles and are ideal for visualizing hierarchical structures or displaying a hierarchical view of data, for example, when you want to show which products sell best in your company. The rectangles define different categories, which can be distinguished by color.

Treemaps offer numerous advantages over conventional diagrams:

• They add variety to your presentation and thus pique your audience's interest. The unusual type of diagram attracts attention and sparks interest.
• They can be used in combination with image backgrounds, allowing you to strategically incorporate flags, product images, logos, buildings, and other impactful graphics. This is particularly useful for product or company presentations.
• Treemaps make it easier to recognize patterns and thus provide a clearer overview. Categories can be easily color-coded, allowing for the clear presentation of a large amount of data.
• Branching structures can be excellently represented using rectangles; each subordinate branch can be indicated as a smaller rectangle. This allows your audience to easily follow the presentation, even with complex hierarchies.
• Furthermore, treemaps make it easier to illustrate the relative sizes of different categories. The areas of the rectangles are chosen proportionally to the size of the data unit being represented. Treemaps are particularly useful for visualizing relationships.

Instructions for creating treemaps

1. Select image and color it

• In the Insert tab, click the Pictures button and select the desired photo.
• Now select the image and, in the Picture Tools / Format tab, select the Color button. Recolor the image according to your wishes under Recolor .

2. Insert diagram

• On the Insert tab, click Chart .
• In the left column, select Treemap and click OK .
• In the data table (Excel), delete all entries for branches 2 and 3.
• Now enter your data in branch 1.
• Finally, place the diagram over the image you inserted first and adjust its size to match the image size.

3. Final steps

• Slide the diagram back down off the screen.
• Select the image and crop it using the keyboard shortcut CTRL + X.
• Right-clicking on the chart opens the context menu. Select "Format data series" .
• In the task pane, click the bucket icon for Fill and Line, then Picture or Texture Fill , Insert Picture From , and Clipboard .

Finally, you can label the segments as needed.
